RAM operating mode
двухканальный, двухканальный режим
Maximum memory capacity
128 ГБ
Maximum memory frequency
5333 МГц
Memory type
DDR4 DIMM, DDR4, DDR5
Number of memory slots
4
Number of sockets
1
Supported processors
Intel12th/13th Gen Core/Pentium Gold/Celeron
Socket
LGA1700
CPU manufacturer
Intel
Chipset
SLI/CrossFire support
нет
Chipset name
Intel Z790
Chipset manufacturer
Intel
Expansion slots
Number of PCI-E x1 slots
1
Number of PCI-E x16 slots
3
PCI Express support
3.0, 4.0, 5.0, 3.0, 4.0, 5.0
Drive controllers
M.2 slot type
Key M, 22110/2280/2260/2242; Key M, 2280/2260/2242
interface type M.2
PCI-E/SATA 3.0
Number of M.2 slots
4
SATA RAID operating mode
0, 1, 5, 10
SATA RAID chip
Intel Z790
Number of SATA 6Gb/s connectors
6
Total number of SATA connectors
6
IDE controller
нет
Net
Wireless interfaces
без Wi-Fi
Ethernet chipset
Intel 2.5GbE LAN
Ethernet controller
2.5 Гбит/с
Audio/Video
Sound scheme
7.1
Sound chip
Realtek ALC897
Sound chip manufacturer
Realtek
Sound
HDA
I/O connectors
Internal connectors
питания процессора 8-pin + 8-pin, поддержка PCI-E 3.0, поддержка PCI-E 4.0, поддержка PCI-E 5.0, разъем для подключения TPM-модуля, разъем питания 24-pin

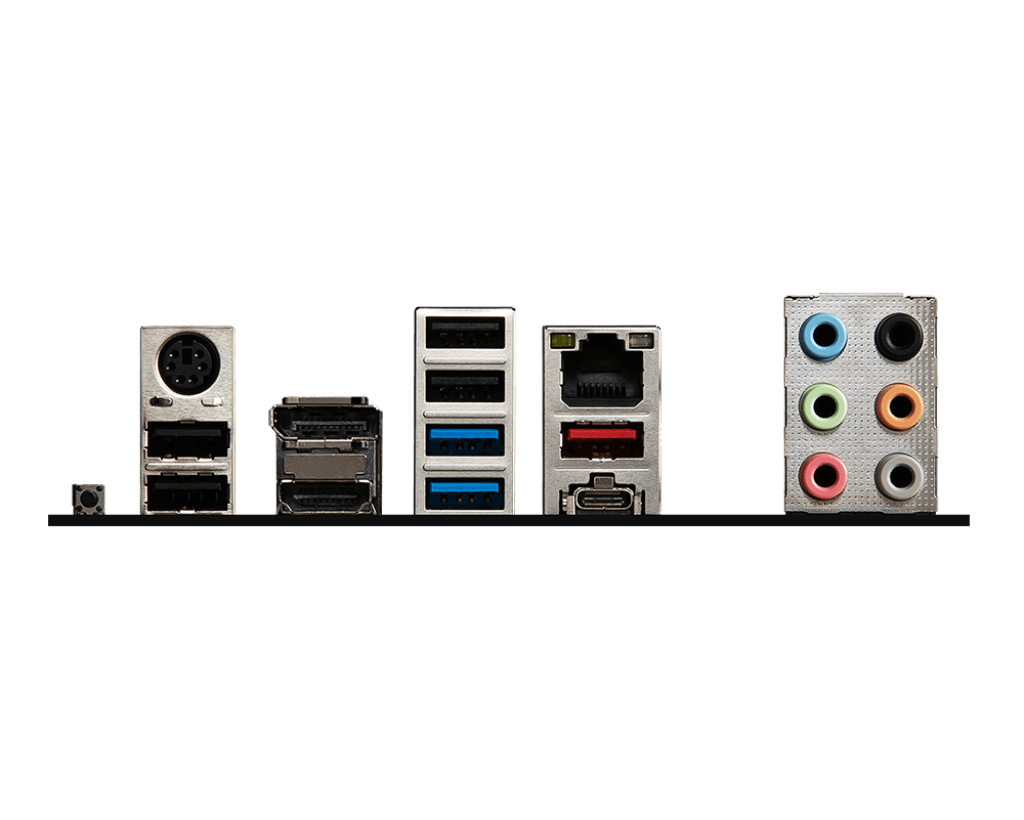

Rear connectors
DisplayPort, HDMI, LAN RJ-45, PS/2 (клавиатура/мышь), USB 2.0 Type-A x 4, USB 3.2 Gen1 Type-A x 2, USB 3.2 Gen2 Type-A, USB 3.2 Gen2x2 Type-C, PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, USB 2.0 x2, USB 3.2 Gen1 Type-A x2, USB 3.2 Gen1 Type-C x1, USB 3.2 x 5, DVI, HDMI, PS/2 (клавиатура/мышь), VGA
