MSI PRO Z790-P WIFI DDR4

Code: CB216

Weight: 0 kg.

Price:
2 990 000 so'm
Old price:

additional characteristics
RGB strip connector есть
Form factor ATX
CPU power connector 8-pin + 8-pin
Main power connector 24-pin
Cooling system type пассивное
Peculiarities Слот M.2 2230 Key-E для WiFi модуля (занят), восстановление BIOS, поддержка UEFI
Application area игровая
Memory/Processor
RAM operating mode двухканальный, двухканальный режим
Maximum memory capacity 128 ГБ
Maximum memory frequency 5333 МГц
Memory type DDR4 DIMM, DDR4
Number of memory slots 4
Built-in processor нет
Number of sockets 1
Supported processors Intel 12th/13th Gen Core/Pentium Gold/Celeron Processors
Socket LGA1700
CPU manufacturer Intel
Chipset
SLI/CrossFire support нет
Chipset name Intel Z790
Chipset manufacturer Intel
Expansion slots
Number of PCI-E x1 slots 1
Number of PCI-E x16 slots 3
PCI Express support 3.0, 4.0, 5.0
Drive controllers
The operating mode is SCSI RAID 0, 1, 5, 10
M.2 slot type М, 2280/2260/2242
interface type M.2 PCI-E
Number of M.2 slots 4
SATA RAID operating mode 0, 1, 5, 10
SATA RAID chip Intel Z790
Number of SATA 6Gb/s connectors 6
Total number of SATA connectors 6
IDE controller нет
Net
Wireless interfaces Bluetooth, Wi-Fi 802.11a/b/g, Wi-Fi 802.11ac, Wi-Fi 802.11ax, Wi-Fi 802.11n, Wi-Fi 802.11a/b/g, Wi-Fi 802.11ac, Wi-Fi 802.11n, Wi-Fi 802.11ax, Bluetooth, Wi-Fi 802.11ax, Bluetooth 5.3
Ethernet chipset Intel I225V
Ethernet controller 2.5 Гбит/с
Audio/Video
Sound scheme 7.1
Sound chip Realtek ALC897
Sound chip manufacturer Realtek
Sound HDA
I/O connectors
Internal connectors питания процессора 8-pin + 8-pin, поддержка PCI-E 3.0, поддержка PCI-E 4.0, поддержка PCI-E 5.0, разъем для подключения TPM-модуля, разъем для подключения ленты RGB, разъем питания 24-pin

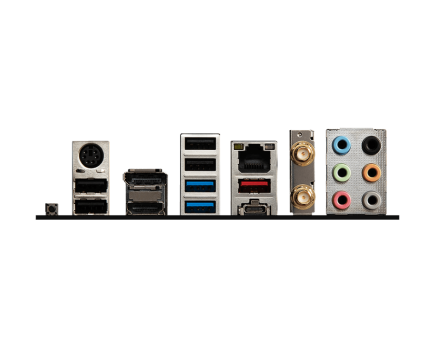

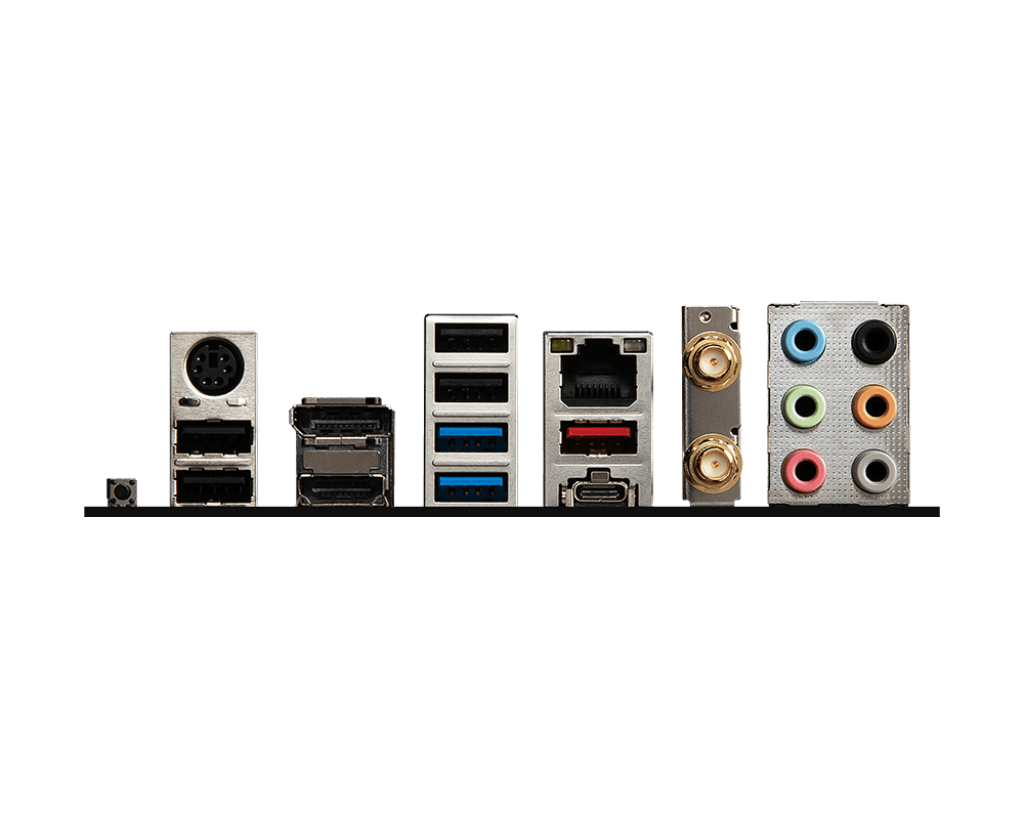

Rear connectors DisplayPort, HDMI, LAN RJ-45, PS/2 (клавиатура/мышь), USB 2.0 Type-A x 2, USB 3.2 Gen1 Type-A x 2, USB 3.2 Gen2 Type-A, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, PS/2 (клавиатура/мышь),USB 3.2 x 4, PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Brand MSI
